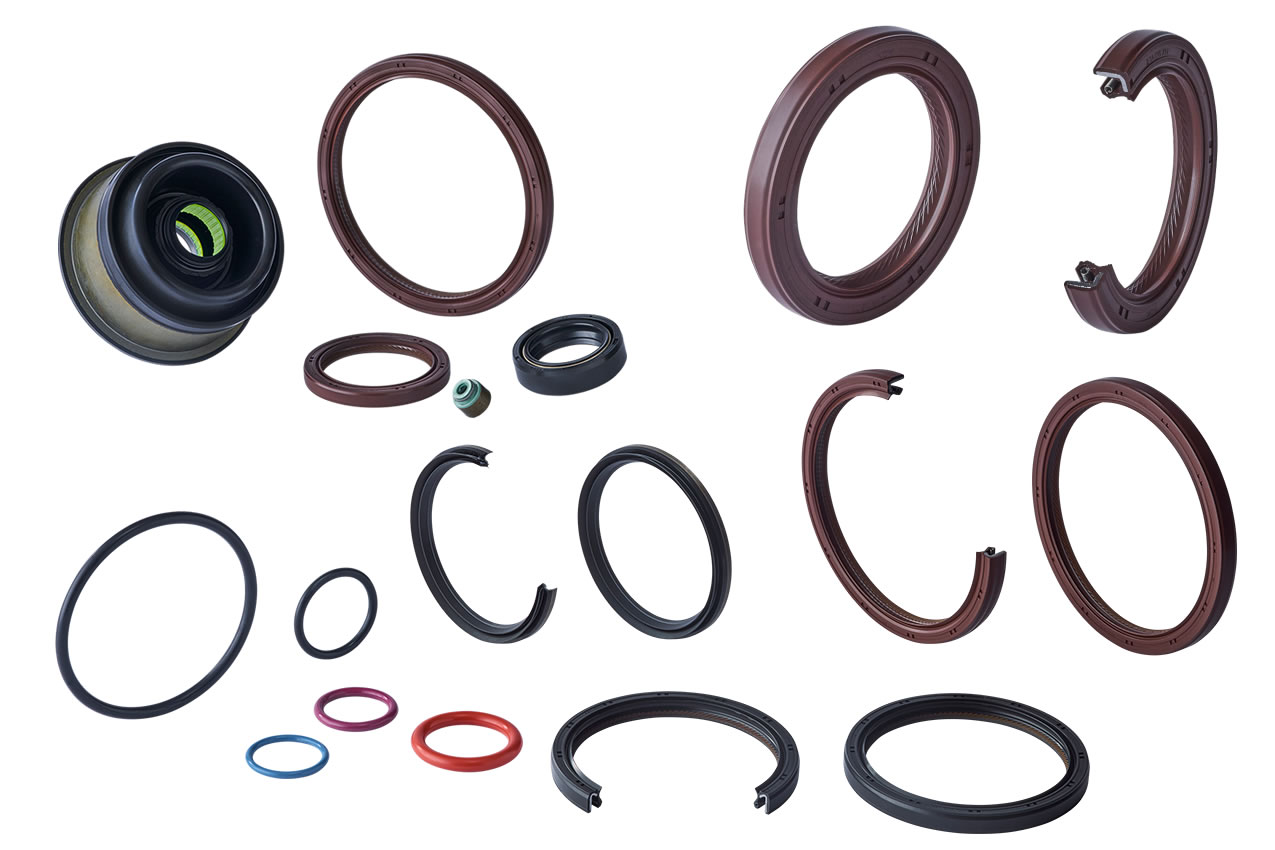

Oil seal

Provides both sealing and lubrication for motion surfaces such as machine rotary shafts

Product Description

Oil seals are functional parts that seal fluid. It is mainly used for the rotating shaft of machine to prevent oil leakage and the contamination from the outside.

Features

We have a wide range of materials in stock for variety of applications, and we select the most suitable material based on the specification.
Through our unique designs, we develop products and materials that meet our customers' needs.

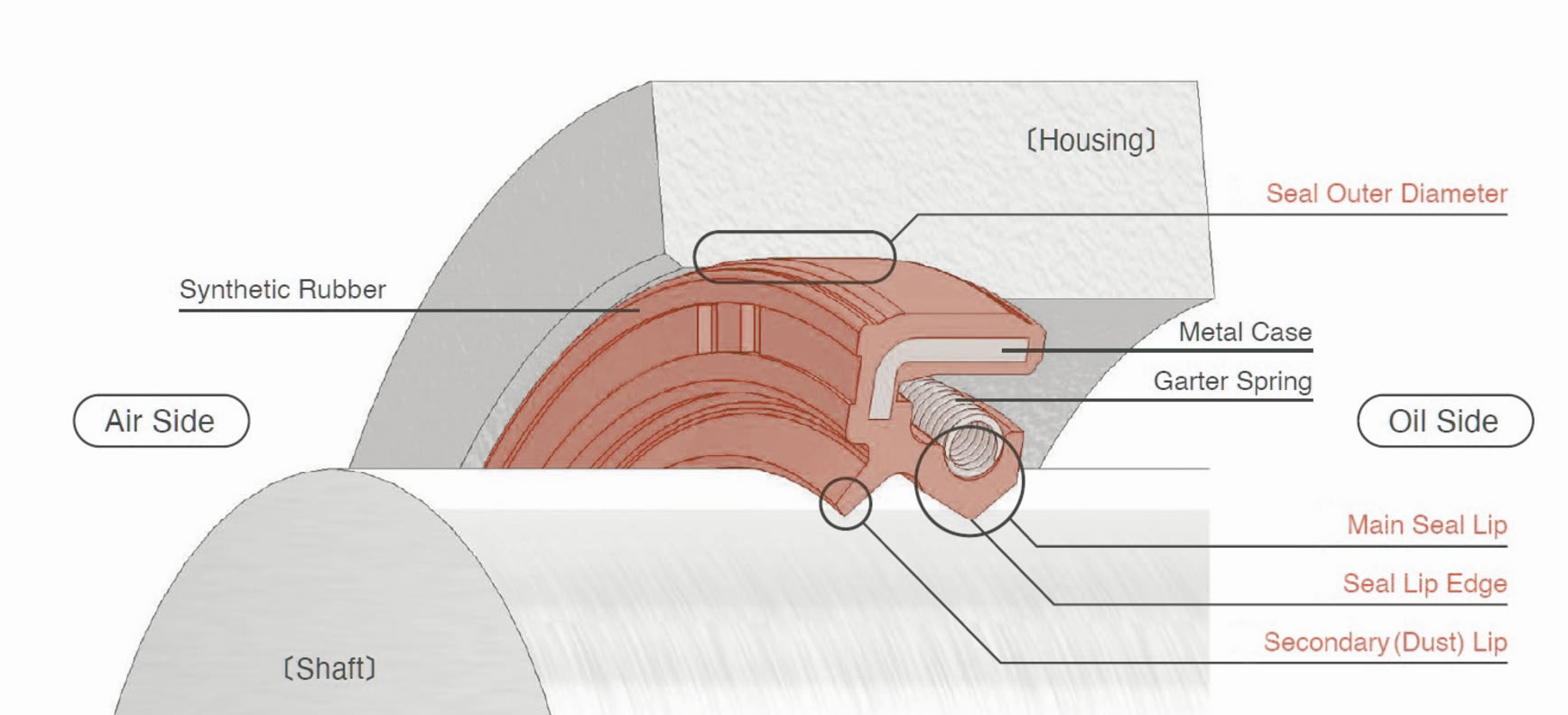

Basic Structure

A typical oil seal consists of synthetic rubber, a metal case, and a spring. Oil seal basically has 2 lips, main and dust lip. The main lip seal fluid to contact the rotation shaft. The dust lip prevent penetration of the contamination from outside. The spring supports to increase and maintain the radial force.

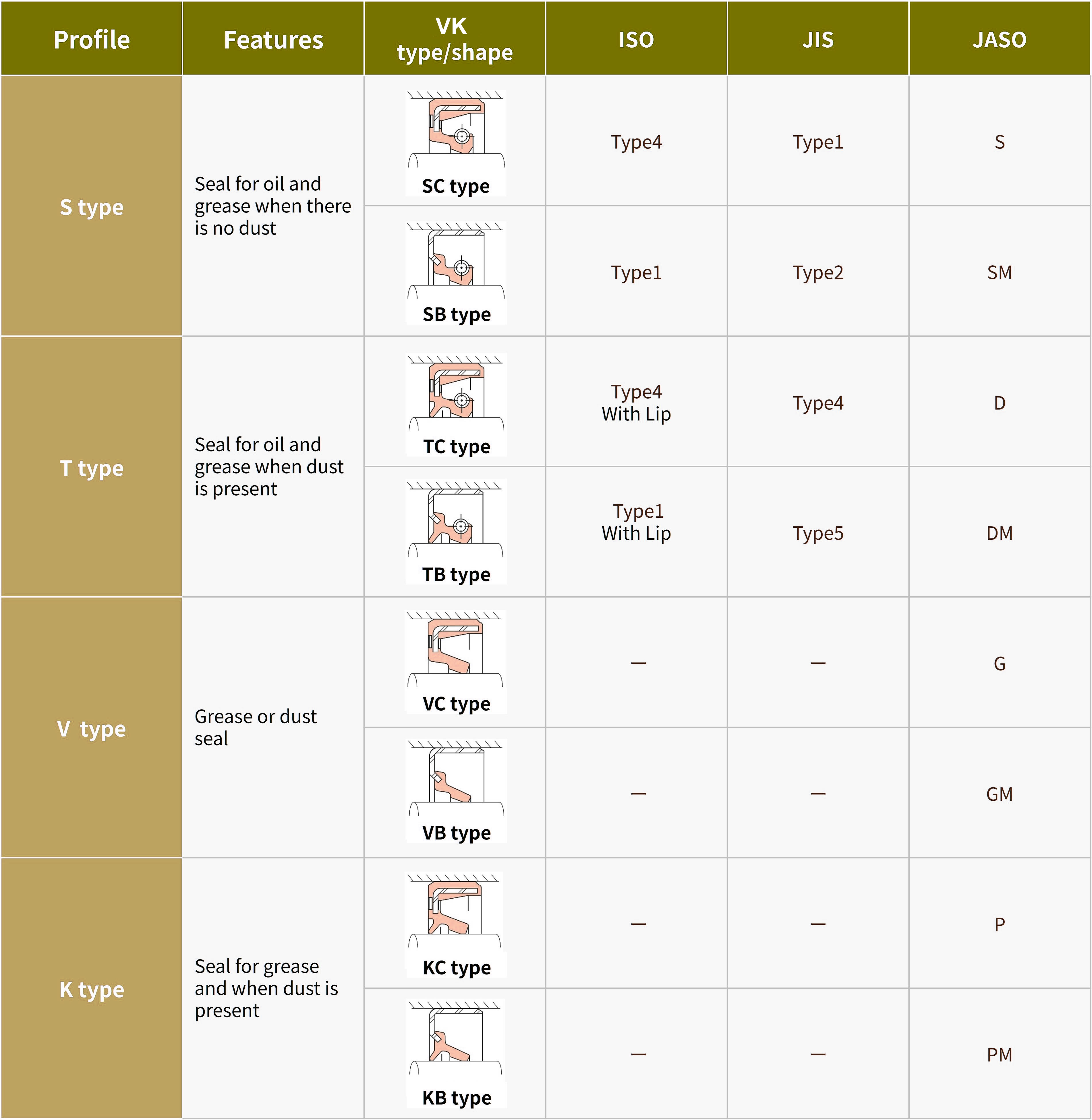

Comparison table of VK seal type and ISO, JIS, JASO type

Oil seal come in a variety of models, dimensions, and materials, and the shape (model) varies depending on whether external dust is present and the type of object to be sealed. VK offers models that comply with ISO/JIS/JASO standards, such as SC, SB, TC, and TB.


(Note) ISO: International Standards, JIS: Japanese Industrial Standards, JASO: Japanese Automotive Standards
